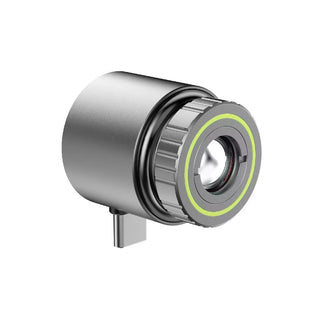

TOOLTOP M7 Thermal Imager - 256x192 IR Resolution, 8x Zoom, 50Hz for Outdoor Inspection & Hunting

TOOLTOP
|
SKUMP1543S
$229.99 $0.00( / )
Tax included.Estoque no Brasil. Sem Risco de Taxa. Shipping calculated at checkout.
Descriptions: Mini thermal imager, Android ultra-far night vision thermal imaging, with the mobile phone APP can realize real-time thermal imaging picture viewing, photo and video recording, image super-resolution, pseudo-color switching, picture-in-picture overlay and other functions, widely used in outdoor observation, exploration and other fields. Features: 1. With 10mm focal length...
  • M7
  • PL

Descriptions:

Mini thermal imager, Android ultra-far night vision thermal imaging, with the mobile phone APP can realize real-time thermal imaging picture viewing, photo and video recording, image super-resolution, pseudo-color switching, picture-in-picture overlay and other functions, widely used in outdoor observation, exploration and other fields.

Features:

1. With 10mm focal length thermal imaging monocular, capable of detecting humans at up to 800 meters.

2. 256x192 high-resolution infrared sensor for easy target detection at night. Equipped with ISR function—when activated, it doubles image clarity.

3. 1-8x continuous zoom and manual focus, ensuring clear images even at maximum magnification.

4. Jungle Mode is a proprietary image processing algorithm designed for forest and jungle environments, delivering high-quality rendering of both target objects and backgrounds to effectively highlight heat sources.

5. Moveable cross cursor, easy to identify and accurately locate targets.

Specifications:

Brand: TOOLTOP
Model: M7
Detector Type: Vanadium oxide uncooled focal plane detector
Effective Pixels: 256x192
Pixel Pitch:12um
Spectral Range:8um~14um
Sensitivity (NETD): ≤40mK@f/1.0
Focal Length: 10mm
Field of View: H: 17.5°,V: 13.1°
Focus Control: Manual Focus
Color Palettes:6 (white hot/black hot/iron red/alarm/emerald/amber)
lmage Mode: General Mode/Raw Mode/Jungle Mode/Sketch Mode
Cross Cursor: Color & Style Switching Support
Thermal lmage Flip: Support
USB Port: TYPE-C
System Requirements: Android 6.0 or later
Power Supply: DC 5V
Power Consumption: 0.35W
Operating Temperature: -20°C~+50°C
Product Dimensions: Ф26 mm x 29.5mm
Net Weight: 26g

Package Includes:

1x Thermal Imager
1x English User Manual
