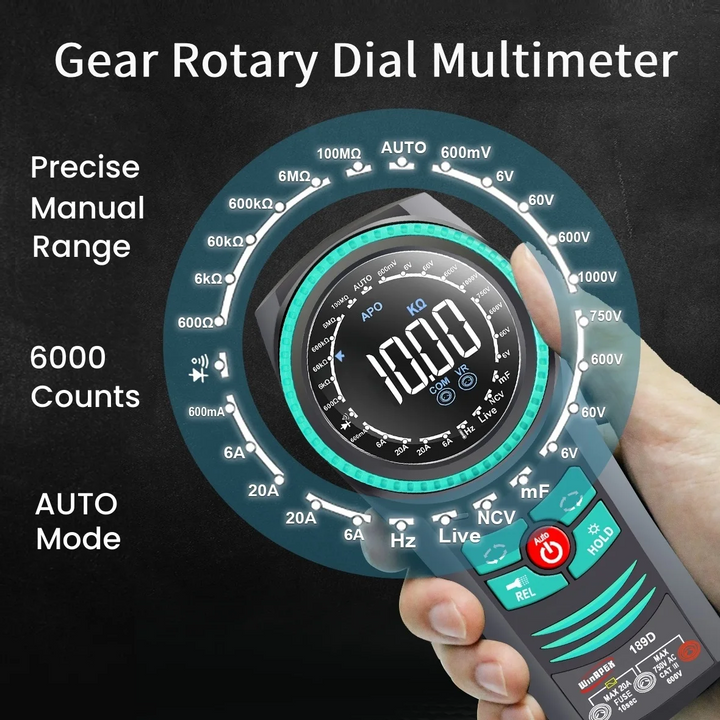

Portable Rotary Dial Smart Digital Multimeter 6000 Counts AC/DC Voltage Current Capacitor Diode Resistance Hz Tester

Features:

- Dual-integral A/D conversion core, superior performance smart multimeter, supports overload protection

- High-voltage diode output measurement. Provides 1V higher voltage than traditional diode measurement, allowing maintenance personnel to measure a variety of LEDs more conveniently

- Ultra-bright color screen, 5-level adjustable backlight, clear reading

- Handheld turntable, using LCD turntable instead of traditional turntable, thumb gently rotates the gear to easily adjust the measurement function of each level, and supports key switching

- 6000 Counts True RMS Multimeter: measure DC voltage and AC true effective value, DC current and AC current, resistance, capacitance, frequency, temperature, diode, on-off, automatic identification test

Specifications:

Name: Smart Rotary Dial Multimeter

Display mode: High brightness color screen display

Maximum display: 5999 (3 5/6) bit automatic polarity display

Measurement method: Dual integration A/D conversion

Sampling rate: approximately 3 times per second

Over range display: the highest bit displays "OL~"

Low voltage display: supported

Working environment: (0~40) ℃, relative humidity<80%

Power supply: 2 * 1.5V AA batteries (not included)

Size: 153X70X33 mm (length X width X height)

Weight: Approximately 200g

True RMS

LCD turntable rotation

key function selection

AUTO(ACV/DCV/Ω/Beep)

DC Voltage:600mv/6v/60v/600v/600V

AC Voltage:6V/60V/600V/600V

AC current: 6A/20A

DC current:600mA/6A/20A

Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/100MΩ

Capacitors:60nF/600nF/6uF/600uF/6mF/60mF

Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

Temperature measurement:-200-1300℃(-4F-1832F)

Diode and continuity: Display the forward voltage drop of the diode; open circuit voltage approximately 4.2V, buzzer continuously sounding, the resistance between the two points is less than (50±20)Ω.

Adjustable backlight display

NCV measurements

Flashlight

live/null wires identification

Note:

Due to the limitation of logistics channels, we cannot send the batteries to you together. This product uses 2 * 1.5V AA battery, please bring your own battery

Package List:

1 x Multimeter

1 x Test leads

1 x English User Manual

1 x Thermocouple (only for 189C)
