2024 NEW TOOLTOP ET13S 2 In 1 192*192 Thermal Imager Multimeter 10000 Counts 2.8 Inch Touch Screen Electric Circuit Automobile Inspect IR Thermal Camera Multimeter

TOOLTOP
|
SKURC0004S
$181.76 $0.00( / )
Tax included.Estoque no Brasil. Sem Risco de Taxa. Shipping calculated at checkout.
Features: High-Resolution Images: With an uncooled focal plane sensor and an image capture frequency of 20Hz, as well as an imaging pixel of 192*192px, this device is capable of providing clear and detail-oriented thermal images. Adjustable Field of View: The field of view is tunable from 0.1 to 0.99, with...
  • ET13S(Red)
  • ET13S Micro Lens
  • ET13S Set(Red)
  • CN

Features:

High-Resolution Images: With an uncooled focal plane sensor and an image capture frequency of 20Hz, as well as an imaging pixel of 192*192px, this device is capable of providing clear and detail-oriented thermal images.

Adjustable Field of View: The field of view is tunable from 0.1 to 0.99, with 0.95 being the default, making it suitable for various applications.

Multifunctional Multimeter: Equipped with a wide array of parameters, the integrated multimeter can measure readings up to 1000V for DC and 750V for AC inputs, and also includes high measurement resistance, capacity, diode, and duty cycle ranges.

User-Friendly Interface: Featuring a 2.8-inch LCD touchscreen with 320 by 480 resolution and a Type-C USB interface, the device ensures an interactive operation.

Portable and Power-Saving: The compact size, lightweight structure, and inbuilt Li-ion battery not only make this device easy to carry but also reduce power consumption, offering a convenient experience for fieldwork tasks.



Specifications:

Thermal Imaging Parameters: ET13S
Sensor: Uncooled focal plane
Image Capture Frequency: 20Hz
Thermal Imaging Pixel: 192*192
Display Image Resolution: 240*240
Field of View (Fov): 50.0(H) × 50(V)/72.1(D)
Emissivity: 0.1-0.99 is tunable and 0.95 is the default
Measurement Temperature Range: -20℃ ~+550℃
Mode: Automatic gain
Color Board: Iron Red, Rainbow, Fusion, White Heat, White Heat Highlights
Temperature Measurement Error: >0℃±2℃ or ±2% ≤0℃±5℃ or ±5
Display Temperature Accuracy: 0.1℃/0.1F



Multimeter Parameters:

DC highest Input Voltage: 1000V
AC highest Input Voltage: 750V
Resistance Highest Measurement Resistance: 99.99MΩ
Capacitance Highest Measurement Capacity: 99.99mF
Duty Cycle Measurement Range: 0.1% ~ 99.9%
Diode Measurement Range: 0V ~ 3V
On-Off Test Maximum Resistance: 999.9Ω
Display Number: 9,999 words updated about 3 times per second



Other Parameters of The Device:

Display Screen: 2.8 inches, 320 by 480 resolution
Touch Screen: Resistive touch screen
USB interface: Type-C USB
Storage Capacity: 3.5MB
Image Format: BMP file
Battery: Built-in Lithium Battery
Storage Temperature: 20~60℃ (-4~140F)
Working Temperature: 0~50℃ (32~122F)
Working Humidity: <85%RH (Non-condensing)
Product Size: 134 mm * 69 mm * 25 mm
Product Weight: 130g (not including accessories)



Notes:

The ET13S (Red) option only includes the TOOLTOP ET13S Thermal Imager Multimeter.

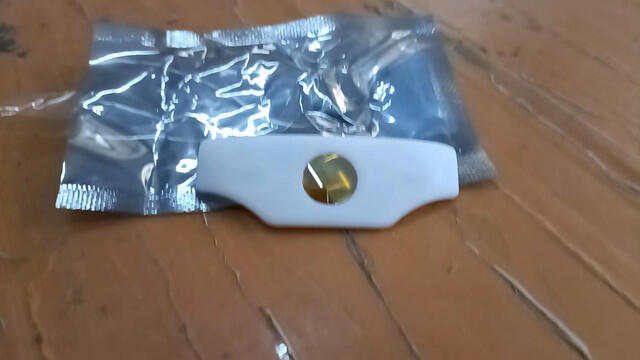

2. The ET13S Micro Lens option only includes Micro Lens and does not include the machine.

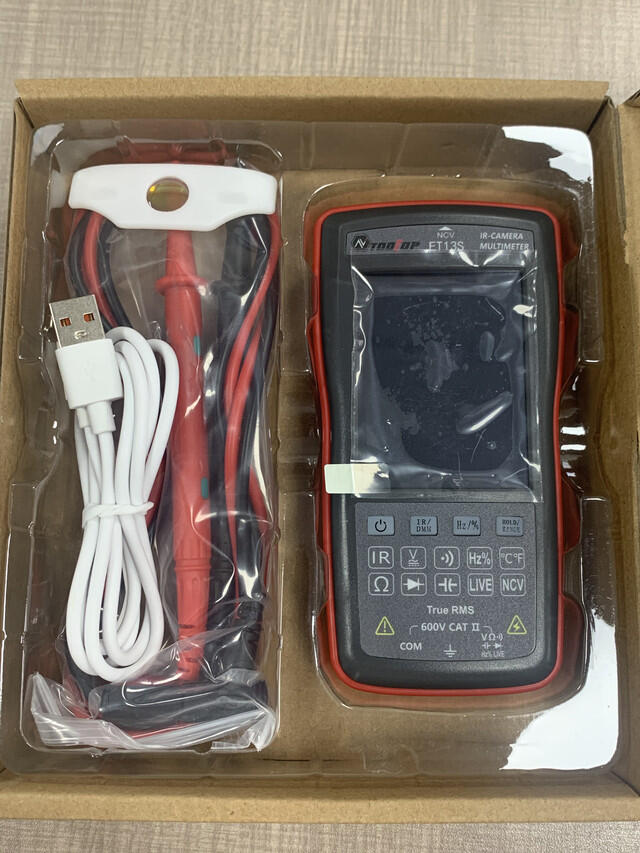

3. ET13S Set (Red) options include TOOLTOP ET13S Thermal Imager Multimeter and ET13S Micro Lens.



Video:



Type:

Thermal Imaging Cameras

Vendor:

TOOLTOP

Model:

ET13S(Red), ET13S Micro Lens, ET13S Set(Red)

Ship From:

CN

SKU:

SKURC0004S

Weight:

0.2 kg
