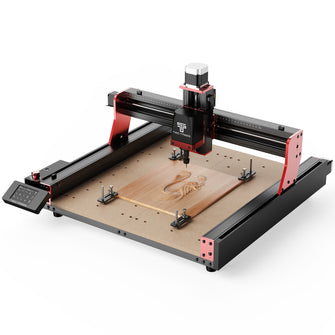

Twotrees TTC450 PRO CNC Router Machine 460x460x80mm Working Space
Features:
95% Pre-assembled. Easier Assembly, can be Installed in 10 Minutes
Large Working Area, 460x460x80mm working space,creating more possibilities to meet most daily needs
Smooth One-Click Switch
Change modules and work modes with a tap on the displayEmergency Stop for One-Button Shutdown
Ccurate Starting Position for Greater Precision
Sleek Design with Custom Aluminum for a Modern Look
3.5-Inch Color Touchscreen for Simplified Settings and Controls
Dust-Proof Design for Cleanliness and Longer Lifespan
Larger Motors for Effortless Carving of Various Materials
Wider Operating Space to Meet a Variety of Cutting Needs
Enhanced Durability with 8mm Gantry Side Plates for Greater Strength
Brass Calibration Nuts for Easier and More Precise Calibration
Specifications | |
|---|---|
| Model | TTC450 Pro |
| Frame structure | Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel |
| Product size | 742mm × 689mm × 413mm |
| Working range | 460mm × 460mm × 80mm (18.1in × 18.1in × 3.14in) |
| Supported tool diameter | 0.5mm to 7mm (ER11 chuck) |
| Compatible engraving materials | Plywood / MDF / Solid Wood / Acrylic / Carbon Brazing / Aluminum / Copper / Stainless Steel |
| Net weight | 15.45 KG |
| Gross weight | 20.6 KG |
| Packing size | 760 × 740 × 218 mm |
| Power supply mode | 24V 3A Power Adapter |
| Switch power supply parameters | INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A |
| Touch screen | 3.5-inch IPS capacitive touch color screen (480×320 resolution) |
| Firmware type | GRBL open source, supports both CNC and laser (no firmware required) |
| Support | TF storage card | USB port | Wifi-2.4G Hz |
| Not supported | Wifi-5G Hz | Bluetooth | Ethernet | USB flash drive |
| Engraving accuracy | 100±0.05mm |
| Maximum engraving speed | 800 mm/min |
| Maximum acceleration | 1000 mm/s² |
| Spindle motor | 775 brushed motor (standard) |
| Spindle speed | Depending on the installation, 8000–30000 RPM |
| Tool size | According to ER11 collet inner hole size supports 0.5–6 MM diameter tool |
| Engraving layer height | Non-metal 0.1mm–20mm | Metal 0.1mm–0.2mm |
| Programming software | Artcam, Fusion360, EASEL, Carveco Maker, etc. |
| Support system | MacOS \ Windows \ Linux |
| Software language | Chinese \ English \ Spanish \ German \ French \ Russian \ Portuguese \ Italian \ Japanese \ Korean \ Turkish |
| Program support format | .nci \ Gcode |
| Safety certification | CE-EMC / CE-LVD / CE-MD / CE-RED / ROHS / FCC-Sdoc / FCC-ID |
| Optimal engraving environment temperature | 0°–40° |
